These chimney fans mount easily to either tile lined or metal flues with adjustable brackets that expand to fit the inside of the flue. The fan assembly can swing out of the way for chimney inspection and cleaning.

Solve draft problems for solid fuel fireplaces and stoves or gas fueled appliances
Overcome chimney design problems like small, short or offset flues
Eliminate problems caused by down-drafts, cold startups and tight construction
Clamshell design for easier installation and maximum accessibility to chimney

Features:

Speed control
PSC ball bearing motors with -40° F, low temp lubricant
Patented motor cooling fan automatically activates, extending motor life
Clam-shell design for easy installation, inspection and service
Hi-Performance backward inclined impeller repels soot
Hi-temp powder coat finish

Click Here for Manual

Click Here for Installation Instructions

Click Here for Brochure

Sizing:

Size selection for solid fuels (wood): Multiply the vertical and horizontal hearth opening to determine the face area opening in square feet. If the fireplace is open on the sides or back, total all openings to arrive at the total face area. If typically the fire can be maintained but smoke drifts into the room, select the model which has a face area capacity equal to or greater than the face opening. The RT-750H model can be used for up to 14 sq. ft. opening for woodburning. The RT-1500H model can be used for up to 28 sq. ft. opening for woodburning. If in doubt, contact us for assistance.

Size selection for gas/oil units:

Model	Vent Pipe Diameter	BTU/HR. Input, Gas w/ Draft Hood/Diverter	BTU/HR. Input, Gas/Oil w/ Barometric Control	Max. Equivalent Vent Length (FT) @ 400 ℉
RT750	8"	400,000 to 700,000 700,000 to 900,000	500,000 to 900,000 900,000 to 1,200,000	100' 50'
RT750	10"	700,000 to 1,000,000 1,000,000 to 1,200,000	900,000 to 1,200,000 1,200,000 to 1,500,000	100' 50'
RT1500	12"	1,000,000 to 2,000,000 2,000,000 to 2,400,000	1,200,000 to 2,700,000 2,700,000 to 3,200,000	100' 50'
RT1500	14"	2,000,000 to 2,500,000 2,500,000 to 2,700,000	2,700,000 to 3,500,000 3,500,000 to 3,700,000	100' 50'

Specifications:

Specifications	RT-750H and RT-750	RT-1500H and RT-1500
Maximum Face Area of Fireplace*	14 square feet	28 square feet
Motor HP	1/12	1/2
Motor Amps	1.2	5.8
Motor Volts	120	120
Weight	34 lbs.	47 lbs.
Base	14.5" x 14.5"	17" x 17"
Height	17.5"	22.5"
Inlet	8"	12"
Tile Lined Chimney Installation	Clamps to rectangular tile liners 6" x 6" through 10" x 14" and round tile liners from 6" - 11".	Clamps to rectangular tile liners 8" x 8" through 12" x 14" and round tile liners from 10" - 14".
Metal Vent Installation	As small as 8" ID and as large as 12" OD	As small as 12" ID and as large as 20" OD

Warranty Information:

LIMITED TWO YEAR WARRANTY
The manufacturer warrants to the original purchaser that this product will be corrosion* resistant and free from mechanical defects due to faulty material or workmanship for a period of (2) years from the date of original purchase or delivery to the original purchaser, whichever is earlier. Remedies under this warranty are limited to repairing or replacing, at the manufactures option, any product which shall, within the above stated warranty period, be returned to the manufacturer, postage prepaid. There are no warranties which extend beyond the description on the face hereof, and the manufacturer expressly disclaims liability for incidental or consequential damages arising from the use of this product. This warranty in lieu of all other express warranties and no agent is authorized to assume for the manufacturer any liability additional to those set forth in this limited warranty. Implied warranties are limited to the stated duration of this limited warranty. Some states do not allow limitation on how long an implied warranty lasts, so that limitation may not apply to you. In addition, some states do not allow the exclusion or limitation of incidental or consequential damages, so that above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from State to State. *Inducer housing and components must be compromised, adversely affecting normal operation due to corrosion. 6 Month Customer Satisfaction Guarantee: If a customer is not satisfied with their auto drafter this guarantee allows the customer a full refund. The manufacturer will not cover shipping or dismantling charges.

LIMITED TWO YEAR WARRANTY

The manufacturer warrants to the original purchaser that this product will be corrosion* resistant and free from mechanical defects due to faulty material or workmanship for a period of (2) years from the date of original purchase or delivery to the original purchaser, whichever is earlier. Remedies under this warranty are limited to repairing or replacing, at the manufactures option, any product which shall, within the above stated warranty period, be returned to the manufacturer, postage prepaid.

There are no warranties which extend beyond the description on the face hereof, and the manufacturer expressly disclaims liability for incidental or consequential damages arising from the use of this product. This warranty in lieu of all other express warranties and no agent is authorized to assume for the manufacturer any liability additional to those set forth in this limited warranty. Implied warranties are limited to the stated duration of this limited warranty.

Some states do not allow limitation on how long an implied warranty lasts, so that limitation may not apply to you. In addition, some states do not allow the exclusion or limitation of incidental or consequential damages, so that above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from State to State.

*Inducer housing and components must be compromised, adversely affecting normal operation due to corrosion. 6 Month Customer Satisfaction Guarantee: If a customer is not satisfied with their auto drafter this guarantee allows the customer a full refund. The manufacturer will not cover shipping or dismantling charges.

Draft & Ventilation Fans

Programmable 7 Day Digital Timer

AD-1 Auto-Draft Fan

ENERVEX Fan for Gas/Oil Applications

Draw Collar for Wood Stove

EF Round Duct Booster Fan

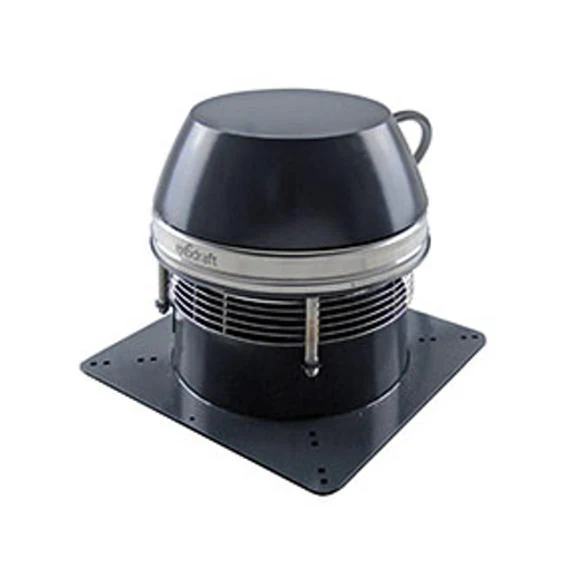

ENERVEX Fan for Wood/Pellet/Coal Applications

Draw Collar for Wood Insert

Auto Draft Chimney Top Ventilator

Thru-the-Wall Room to Room Fan - 2 Speed

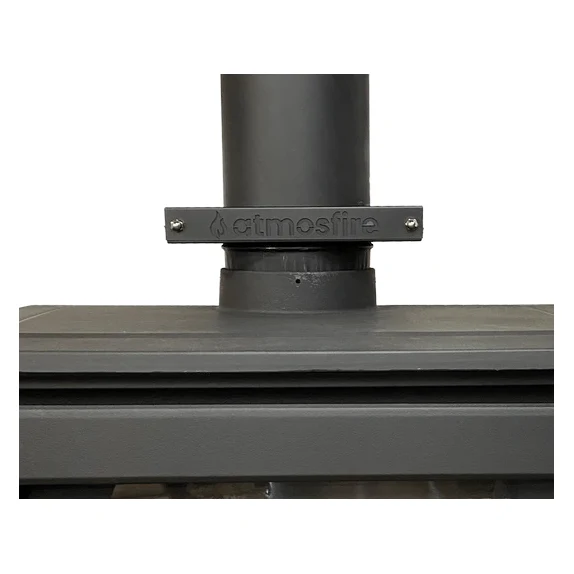

Outside Mount Draw Collar
